Kreisel GY470 Helicopter Micro

Artikelbeschreibung

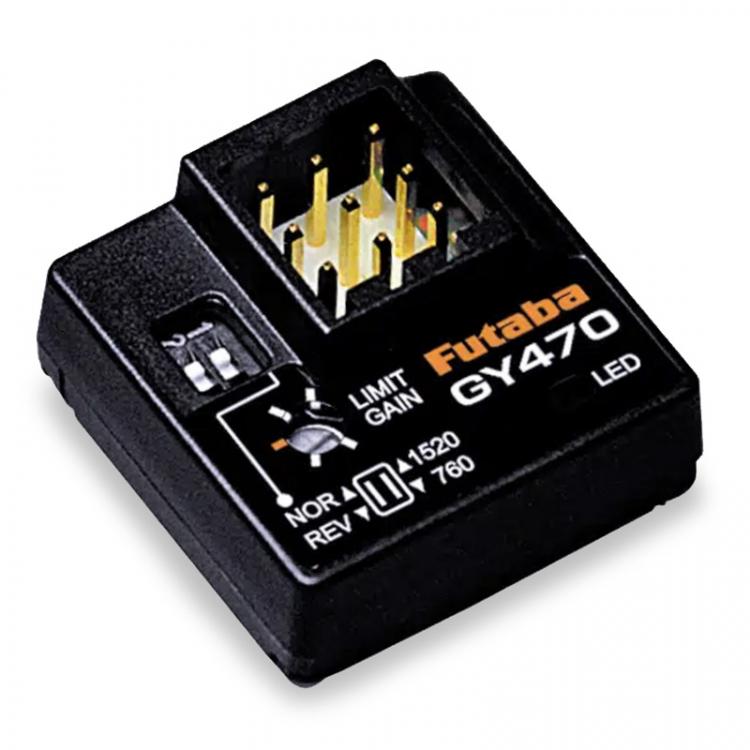

The GY470 gyro is a rate gyro for RC helicopters. It’s is a lightweight micro gyro developed for RC helicopter rudder (yaw axis) control. It can be used with minimum setup and includes an S.BUS/S.BUS2 port.

Remote gain function and mode switching function

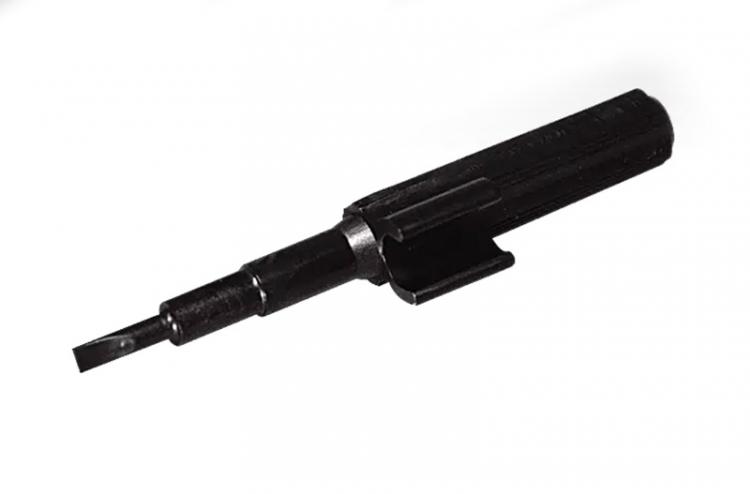

You can adjust gain from the transmitter by using the remote gain function. Gain can also be adjusted with the trimmer on the GY470. The mode switching function allows AVCS/NORMAL gyro mode switching.

Integrated, compact, and light weight
Compact size (20.7x20.7x11mm) and light weight (3.7g) realized by high density mounting technology.

Easy setup
The GY470 can be used immediately with minimum setup.

Supporting S.BUS/S.BUS2 connection

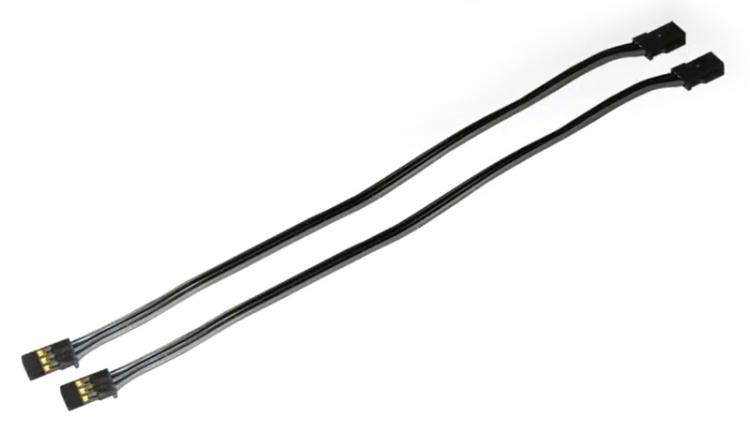

Only one wire connection to the receiver can operate the GY470.

GY470 Specs:
(Integrated sensor type rate gyro)

• Gyro sensor: MEMS vibrating structure gyro
• Operating voltage: 4.0 to 8.4V
• Current drain: 30mA (excluding a servo)
• Operating temperature range: -10°C to +45°C
• Dimensions: 20.7 x 20.7 x 11.0mm (except protrusion)
• Weight: 3.7g
• Functions: Sensitivity trimmer. LED monitor. Servo selection (1520 uS, 760 uS). S.BUS/S.BUS2 connection.
